Weasel Conductor (LT)

Here are some details about a weasel conductor:

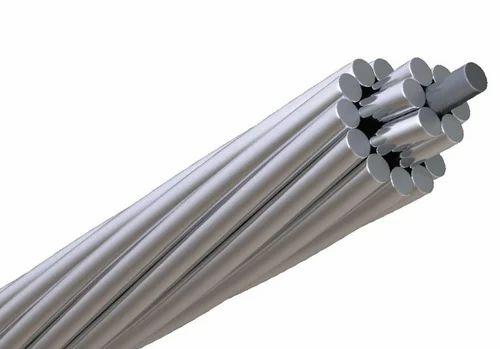

Composition: A weasel conductor is made up of six aluminum strands and one steel strand, each with a diameter of 2.59 mm. The overall diameter is 7.77 mm.

Size: The nominal aluminum area of a weasel conductor is 30 mm2, and the total sectional area is 36.88 mm2.

Weight: A weasel conductor weighs 128 kg per kilometer.

Voltage: A weasel conductor can be used for voltage levels up to 11 kV.

Current carrying capacity: A weasel conductor has a current carrying capacity of 114 A.

Usage: Weasel conductors are commonly used in primary and secondary distribution systems, and as bare overhead transmission conductors.

Material: Weasel conductors can be made from both aluminum and steel.

Corrosion resistance: Some weasel conductors are corrosion resistant.

Maximum operating temperature: Some weasel conductors can operate at temperatures of up to 250°C.
