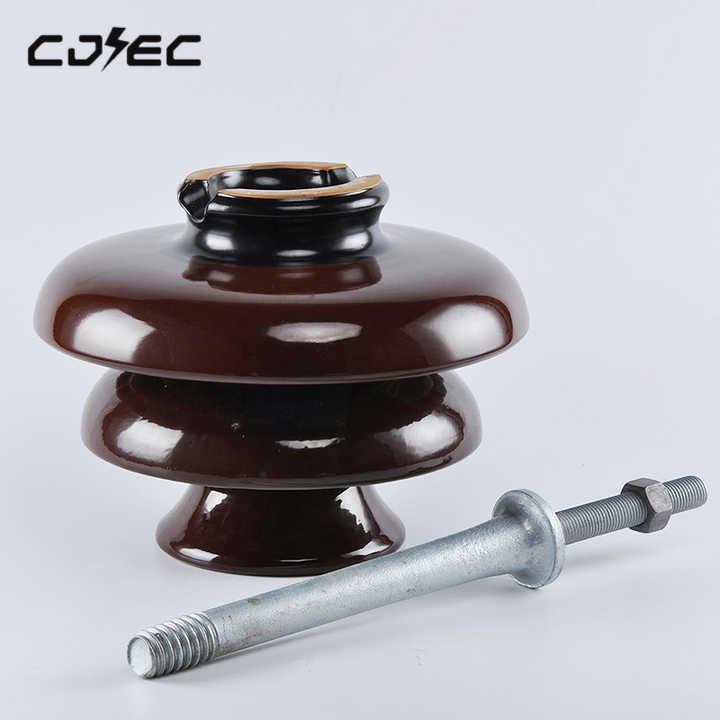

11kv Pin And Insulator (HT)

Voltage: 11 KV, 22 KV & 33 KV
Material: Porcelain
Usage/Application: Electrical Installation
Rated Voltage: 11 KV, 22 KV & 33 KV
Tensile Strength: 5 KN & 10 KN
Frequency: 50 HZ
Mounting Type: Vertical
I Deal In: New Only
Color: Brown
Brand: RLI
Country of Origin: Made in India
Production Capacity: 100000
Delivery Time: Immediate
Packaging Details: As per Customer requirements
Porcelain Pin InsulatorsHere are some specifications for an 11 kV pin insulator:
Thread length: The minimum length of the thread on the shank is 110 mm

Shank diameter: The diameter of the shank is 20 mm

Collar diameter: The minimum diameter of the collar is 40 mm

Collar thickness: The minimum thickness of the collar is 5 mm

Nominal system voltage: The nominal system voltage is 11 kV

Highest system voltage: The highest system voltage is 12 kV

Frequency: The frequency is 50 Hz with a 3% tolerance

Number of phases: The number of phases is 3

Neutral earthing: The neutral earthing is effectively grounded

Other specifications for pin insulators include:
The reference standard is IEC 61109
The FRP rod material is boron free ECR
The sheds material is silicon rubber
The top end fittings material is SGCI/MCI/forged steel
The bottom end fittings material is forged steel
The sealing compound material is RTV silicon
